BARRE D'APPUI ACIER INOXYDABLE AVEC STRIES 1.25"X32" (CS DE 10)
| Article number: | HEA-G125SK32F9-10PK |
| SKU: | G125SK32F9-10PK |
- Support technique en ligne / Online technical support
- Garantie du meilleur prix/ Best price warranty
Information

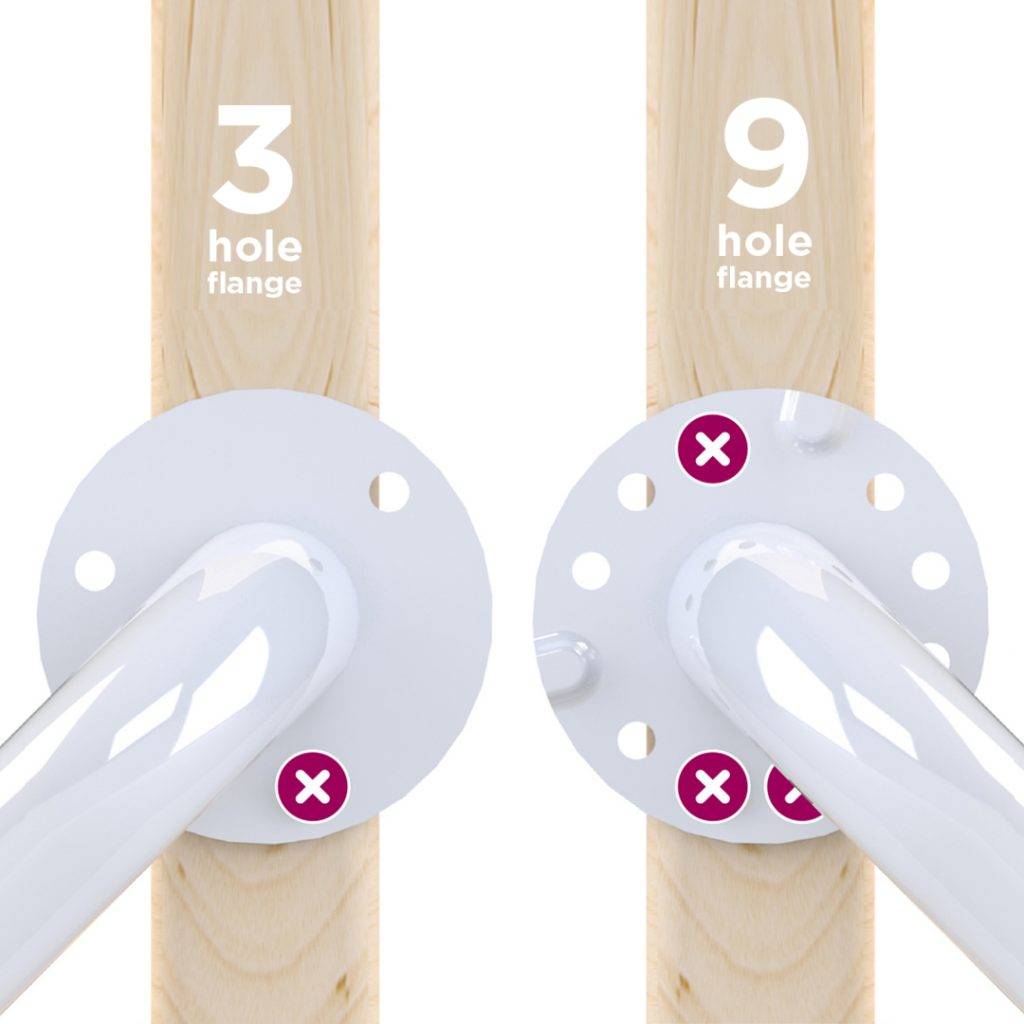

Our Easy Mount Grab Bars provide something secure support to assist you in any room in your house. While other bars have standard three hole flanges, the Easy Mount Grab Bar has 9-holes, which means greater versatility during installation. The extra holes provide mounting options for angled grab bar installations, and for areas where stud spacing may vary from 16” centers. It is easy to add an additional mounting screw for peace of mind. Flange covers conceal the screws for a simple and modern finish.
SPECIFICATIONS
| Material | #304 Stainless Steel |
| Finish / Colour | Knurled (SK), Polished (CP) or Powder Coat White (SW) |
| Weight Capacity | Lengths (12, 18, 24): 500lbs / 227kg Lengths (32, 36, 42): 400lbs / 181kg |
| Rail Diameter | 1.25” / 31.8mm (ADA Compliant) |
| Wall Clearance | 1.50" / 38.1mm (ADA Compliant) |

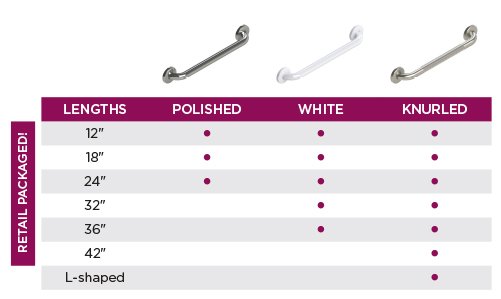

| Grab Bar Lengths | 18, 24, 32, 36, 42” (SK only) / 305, 457, 610, 813, 914, 1067mm (SK only) |
| Height Adjustable | N/A |
| Grip Material | Anti-slip knurled sections (on SK models) |
| Installation Mechanism | Screw to wood backing behind wall |
| Installation Hardware/Fasteners | #10 x 2" / 50.8mm length (x6), S/S wood screws (provided) |
| Fasteners Exposed or Concealed | Concealed |
| Commercial Use | Yes |
| Residential Use | Yes |
| Water Resistant | Yes |
| Rust Resistant | Yes |
| Country of Origin | China |
| Product Code for Polished (CP) Finish | G125CP12F9 G125CP18F9 G125CP24F9 For 10 packs, add -10PK |
| Product Code for Knurled (SK) Finish | G125SK12F9 G125SK18F9 G125SK24F9 G125SK32F9 G125SK36F9 G125SK42F9 For 10 packs, add -10PK |
| Product Code for White (SW) Finish | G125SW12F9 G125SW18F9 G125SW24F9 G125SW32F9 G125SW36F9 For 10 packs, add -10PK |
| Shipping Dimensions | 1 Pack (Tube): Length 18: 23x5x5” / 584x127x127mm Length 24: 28x5x5” / 711x127x127mm Length 32: 38x5x5" / 965x127x127mm Length 36: 42x5x5" / 1067x127x127mm 10 Pack (Box): Length 18: 21.5x16x7"/ 546x406x178mm Length 24: 27.5x16x7" / 699x406x178mm Length 32: 34x16x7" / 864x406x178mm Length 36: 37x16x7" / 940x406x178mm |
| Shipping Weight | 1 Pack (Tube): Length 18: 4lbs / 1.8kgs Length 24: 4lbs / 1.8kgs Length 32: 6lbs / 2.7kgs Length 36: 6lbs / 2.7kgs 10 Pack (Box): Length 18: 20lbs / 9.1kgs Length 24: 23lbs / 10.4kgs Length 32: 29lbs / 13.2kgs Length 36: 31lbs / 14.1kgs |
| Warranty | Limited Lifetime Warranty |
